Product Description
JY100 Tractor GPS Navigation System Important Tip
The instruction manual can be found in [Product guides and documents]Please pay attention to your email before receiving the goods. We will provide the operation method and instruction manual in the email!!
Experience Simulator!
Ability to experience software in advance.Use a computer to perform simulation operations.（The software can be found in the electronic instruction manual or you can inquire with us.）
JY100 has been put into use in many places
SMAJAYU Tractor GPS guidance system JY100 consists of professional GNSS smart antenna, large display and SMAJAYU tractor guidance software. It would be the ultimate guidance solution for today’s precision farmer.

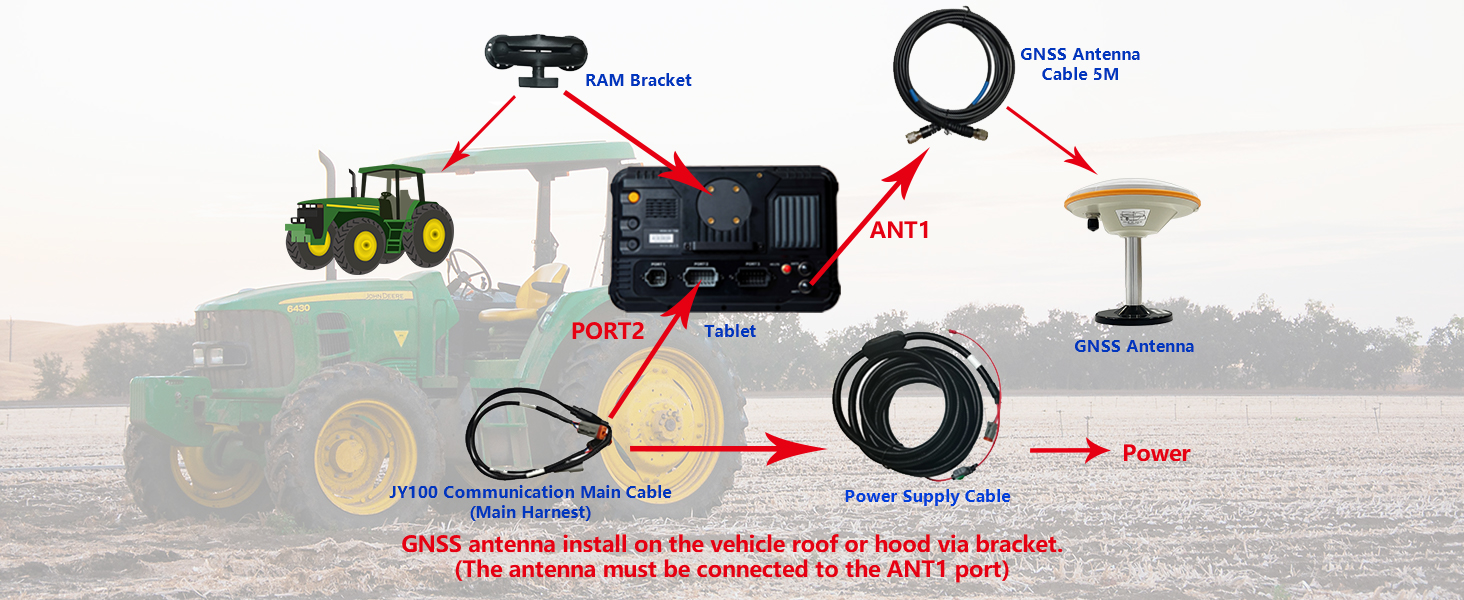

Tractor GPS System Equipment Assembly（Easy installation）
What’s in the package？(Including all accessories in the package)
Tablet、GNSS / GPS Antenna、RAM Bracket、Main Cable、Power Supply Cable、GNSS Antenna Cable
T100 Control Tablet
Multi Function Switching
Supports imperial measurement：feet (length), acres (area), mph (speed)…
Support Multiple language:English, Spanish, Portuguese, Turkish, Japanese…
Tablet Installation
This tractor guidance system is portable and easy to install to work immediately. It can be moved in minutes when you are ready to change to another tractor.

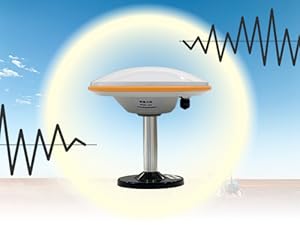

GNSS Antenna
Full frequency band

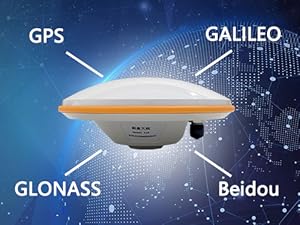

Full frequency band of four systemsSupports the reception of GPS,GLONASS,GALILEO,Beidou signals
Millimeter level accuracy
The phase center is stable.The antenna part adopts a multi feedback point design scheme ,minimizing the impact of the antenna on measurement errors
Strong anti-interference
Antenna LAN has excellent external band suppression performance,suppress useless electromagnetic wave signals,reduce the risk of system loss of lock
Good star collection effect
The antenna unit has high gain and wide directional beam width, ensuring the reception effect of low elevation signals, quickly locking the satellite
Easily Accessible Setting
The main interface can enter three interfaces:
Working interface、System setting interface、Job history interface

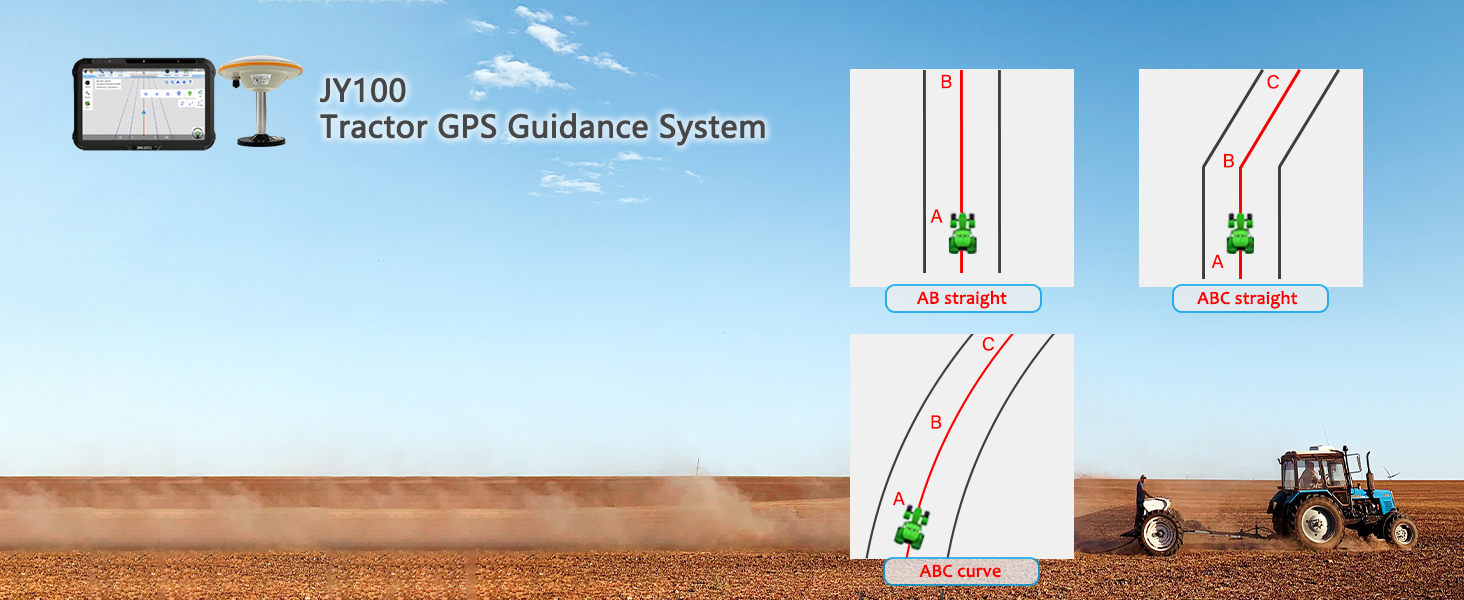

Guidance line
AB straight, ABC straight, ABC curve
Correction type: CORS
2.5cm with CORS correction20-30cm without correction
Suitable model
Suitable for various applications of tractors（JOHN-DEERE、LOVOL，CAT、MT3、CASE、CLAAS、JCB、DEUTZ、MTZ、ZOOMLION…）harvesting machines, plant protection Elect machinery, rice transplanters,and other models
Application scenarios
JY100 guidance system can be widely used for sowing, cultivating, trenching, ridging,transplanting,land consolidation, harvesting and other work scenaries
Other models
If you want to know about other Tractor System——JY305 Auto Steering System，search “JY305” in SMAJAYU store to see more details!
The working interface allows you to quickly start a job.The system setting interface can update the version and set the parameters.Job history interface to view all saved job information.JY100 guidance system software interface is easy to operate, easy to set up, and clear interface.
Product Dimensions : 11.06 x 7.13 x 1.65 inches; 8.68 Pounds
Item model number : JY100 V1
Date First Available : February 12, 2022
Manufacturer : SMAJAYU
ASIN : B09SCTYRQ8
Country of Origin : China
1.What is it: Tractor guidance system includes a 10inch water proof tablet integrated with a high-precision GNSS Board, and 1 high precision GNSS GPS Antenna and accessories cables and tools. It Navigate Tractor go along A-B line.
2. How to work: This tractor gps navigation system is compatible with farming tractor navigation software, under Seting AB line accordingly work with straight navigation or Curve navigation for more precision agriculture.
3.Where to use: Tractor gps navigation system can be widely used for sowing, cultivating, trenching, ridging,spraying pesticide,transplanting,land consolidation, harvesting and other work scenaries. It is suitable for various applications of tractors( CAT, MT3,CASE,CLAAS,JCB,DEUTZ,JOHN-DEERE,MTZ…), harvesting machines, plant protection Elect machinery, rice transplanters,and other agricultural models.
4. Why use: Tractor GPS system integrates the advantages of convenient installation, high precision and quick debugging. Soft-ware has farmer-friendly GUI and large iconic buttons for each function. JY100 is robust, accurate and affordable enabling you to easily perform various farming tasks, extend your operating hours and enhance the productivity of your farm.
5.Supports multiple constellations & frequencies suitable for Any country:GPS L1, L2 GLONASS L1, L2 BeiDou B1,B2，B3 . Multiple languages supported, Map-based navigation,Task Controller functionality via Setting A-B for straight navigation,curve navigation or history path navigation.
